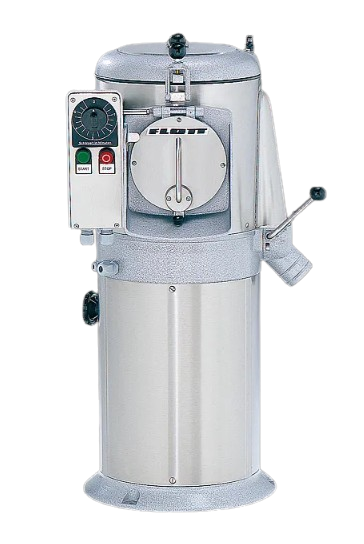

K-Series Peeling Machines – Perfect Peeling Technology for Professionals.
The K-Series peeling machines provide an efficient and compact solution for removing peels from potatoes, carrots and other tuber vegetables in the shortest possible time. These robust machines, manufactured in Germany, are the ideal choice for producing clean, peeled vegetables in large volumes. Thanks to the automatic peeling-time control and user-friendly operation, they save time and simplify work within the production process.
Highlights and Your Benefits.
Maximum Precision & User-Friendliness.
The K-Series peeling machines set standards in performance and safety:
Fast and efficient: Peels large volumes in a very short time, with a capacity of up to 800 kg of raw product per hour.
Gentle peeling process: Delivers optimum results without compromising product quality.
Outstanding quality: Robust construction entirely made of stainless steel (Made in Germany).
Safety: Maximum operator safety ensured by an integrated personnel protection safety circuit.
Automation: Integrated automatic peeling-time control for easier operation and time savings.
Versatile use: One machine for a wide range of peeling applications and even fish descaling tasks.
Information on the Vegetable Peeling Machines.
Application Range
The K-Series is highly versatile and offers flexible peeling systems that can be matched to your specific products.
Suitable products:
Tubers / root vegetables: Potatoes, carrots and other tuber crops
Fish: Fish descaling using a dedicated descaling system
Available Peeling Systems
Double-Edged Super Knife Peeling System
Peels like by hand, using individually mounted, electrolytically sharpened blades. Waste is kept to a minimum because the blades are arranged so that tuber vegetables are guided into the blade spacing by their shape. The direction of rotation can be reversed via a CEE/Cekon plug. Ideal for tuber vegetables when a hand-peeled appearance is required.
Carborundum Peeling System (Abrasive Lining)
Works very quickly and efficiently. Suitable for potatoes and all other tuber vegetables.
Carborundum Descaling System
Works quickly and gently. Gentle fish descaling takes place on the bottom and sides, with a soft water cushion to prevent the fish from being knocked or damaged. Suitable for fish descaling, including thorough washing.
Models and Technical Data.
K 16
Batch capacity: 6 kg
Raw product throughput: up to 150 kg/h
Rated power: 0.25 kW
Dimensions (L × W × H): 43 × 37 × 85 cm
K 18
Batch capacity: 10 kg
Raw product throughput: up to 280 kg/h
Rated power: 0.37 kW
Dimensions (L × W × H): 55 × 47 × 88 cm
K 20
Batch capacity: 15 kg
Raw product throughput: up to 400 kg/h
Rated power: 0.55 kW
Dimensions (L × W × H): 60 × 55 × 97 cm
K 25
Batch capacity: 25–35 kg
Raw product throughput: up to 800 kg/h
Rated power: 1.5 kW
Dimensions (L × W × H): 74 × 61 × 120 cm
Accessories
A range of accessories is available to ensure optimum use of your peeling machine:
Washing inserts:
Standard washing insert
Washing insert with 4 brushes
Washing insert with full-surface brush coverage
Peel collection:
Peel collector (with or without starch separator)
Base frame and containers:
Mobile base frame
Collection bin on casters
Stainless-steel container
Plastic container (available for K 16, K 18 and K 20
