Industrial Washbasins and Stainless Steel Hand Wash Troughs.
The industrial washbasins and hand wash troughs from Heim-EDT are designed for hand cleaning in food processing, catering and industrial companies. They are made of stainless steel 1.4301 and feature a fully welded basin body with generous radii that make thorough cleaning easier.
Available models include a single hand wash basin as well as hand wash troughs with two to six washing stations. Depending on the version, different installation, operation and equipment options are available.
- Stainless steel 1.4301
- 1–6 washing stations
- Fully welded basin body
- Sensor or knee operation
- Wall-mounted or free-standing version
- Customer-specific adaptations
Hand Wash Basins with One to Six Washing Stations.
For individual workstations, the HWB model is available as a compact hand wash basin. For areas with several users, Heim-EDT offers hand wash troughs with two to six washing stations.
The suitable size depends on the number of users, the operational processes and the available installation space. In addition to the standard versions, customer-specific adaptations are possible.
Stainless Steel Industrial Washbasins 1.4301.
Model Overview
| Image | Model | Version | Article Number | Download |
|---|---|---|---|---|
 | HWB | Hand wash basin, 1 washing station | 1601-010-9-0010 | Drawing HWB |

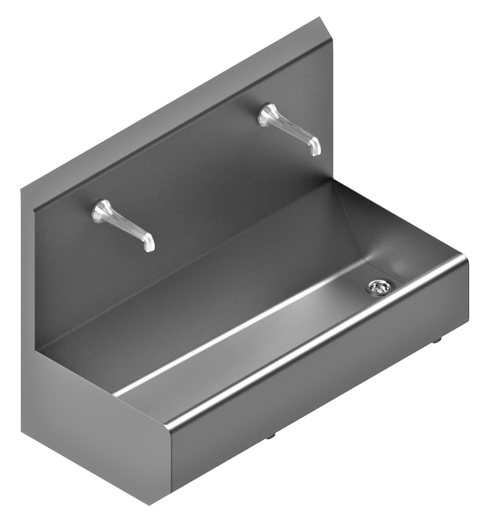

 | HWR 2 | Hand wash trough, 2 washing stations | 1602-020-9-0010 | Drawing HWR 2 |

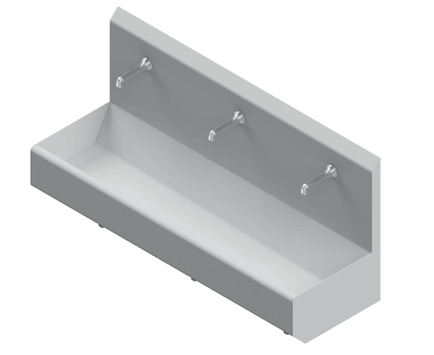

 | HWR 3 | Hand wash trough, 3 washing stations | 1602-030-9-0010 | Drawing HWR 3 |

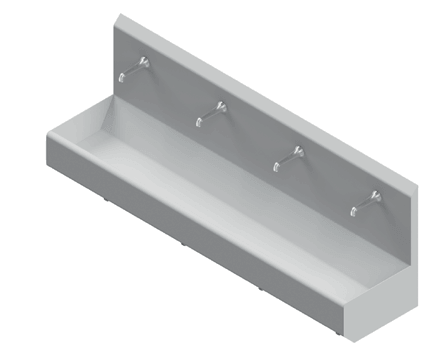

 | HWR 4 | Hand wash trough, 4 washing stations | 1602-040-9-0010 | Drawing HWR 4 |

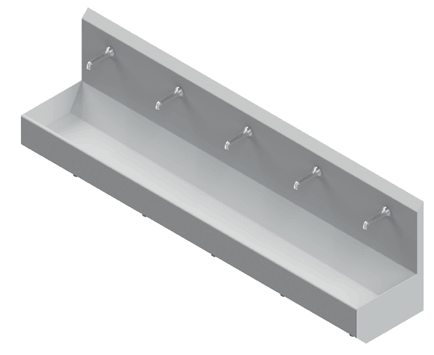

 | HWR 5 | Hand wash trough, 5 washing stations | 1602-050-9-0010 | Drawing HWR 5 |

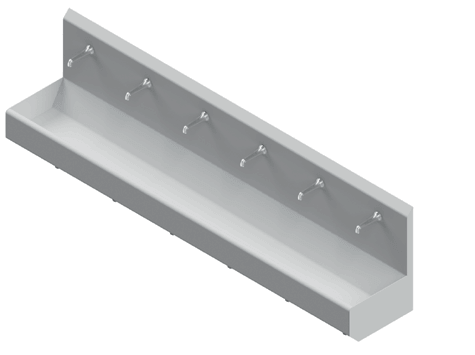

 | HWR 6 | Hand wash trough, 6 washing stations | 1602-060-9-0010 | Drawing HWR 6 |
The hand wash basins and hand wash troughs are made of stainless steel 1.4301. The basin body is fully welded and designed with generous radii. This keeps the inner surfaces easily accessible and allows them to be cleaned regularly and thoroughly.
The robust construction is designed for daily use in commercial and industrial working areas. The different versions can be configured according to the installation situation and the company’s hygiene concept.
Electrical Data Depending on the Version:
For optional components such as an instantaneous water heater or Dyson Wash & Dry, additional or different connection values may apply. The technical documentation of the selected configuration is decisive.
Technical Data
- Material: Stainless steel 1.4301
- Mains connection: 230 V AC, 50 Hz
- Control voltage: 24 V
- Protection class: IP64
- Operation: Sensor or knee operation, depending on the version
- Installation: Wall-mounted or free-standing version
- Washing stations: 1 to 6
- Special versions: Customer-specific adaptations possible
Construction Benefits.
- Basin body made of stainless steel 1.4301
- Fully welded workmanship
- Generously designed radii
- Easily accessible basin surfaces
- Robust design for commercial use
- Different sizes and installation types
- Can be expanded with coordinated accessories
Sensor Operation, Knee Operation and Different Installation Types.
Depending on the version, the industrial washbasins can be activated contactlessly via a sensor or mechanically via knee operation. Both versions allow the water flow to be activated without directly operating the fitting by hand.
Wall-mounted and free-standing versions are available for different installation situations. In addition, versions without rear wall, with substructure or with an integrated Dyson Wash & Dry system are available.
The wall-mounted version keeps the floor area underneath the washbasin clear. This makes the area easily accessible for regular floor cleaning.

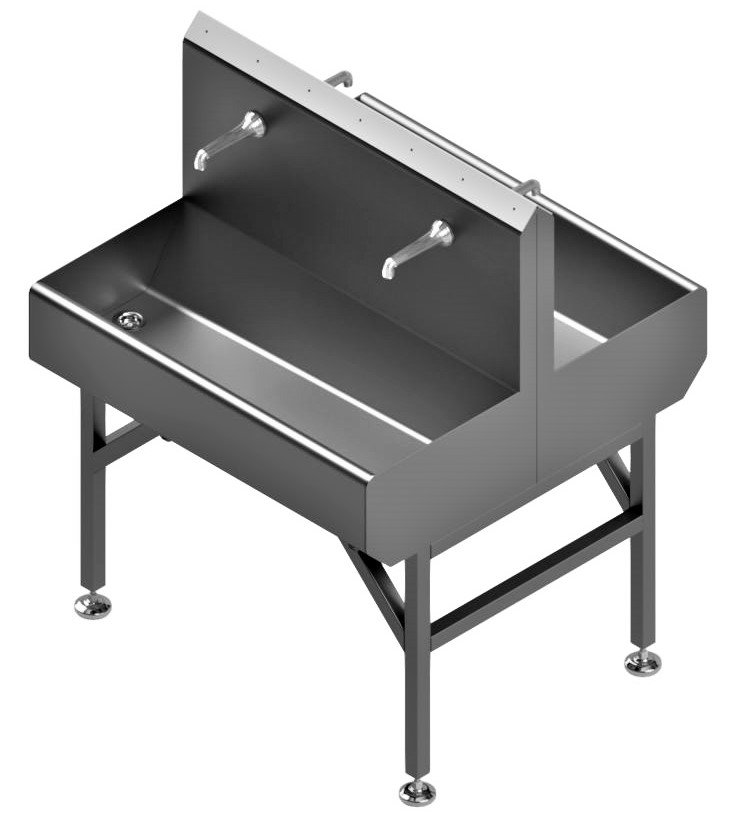

In the free-standing version, the washbasin is mounted on a stainless steel frame. This version is suitable for areas where wall mounting is not possible or not desired.
Washbasins without a rear wall can be used for installation situations where a high splashback is not required or where existing wall surfaces are to be used.
A substructure provides space for technical components or a closed cover below the basin. The specific design is adapted to the required setup.
The Dyson Wash & Dry system combines water supply and hand drying in the washbasin area. It is available as an additional equipment option.
HEIM - EDT | THE RIGHT CHOICE.
Not only do our years of experience with washing systems, hygiene barriers, and operational equipment speak for us, but also our satisfied customers and partners. We don’t just offer you solutions – we develop shared concepts tailored perfectly to your needs and stand by your side for any questions, concerns, and challenges. Reach out to us comfortably and without obligation for more information, pricing, and further details.
Washing Stations for Food, Catering and Industrial Companies.
The industrial washbasins and hand wash troughs are intended for commercial areas where regular hand cleaning is required. Thanks to the different sizes and equipment options, both individual workstations and larger personnel and production areas can be equipped.
Typical areas of application include:
- Food processing
- Meat, sausage and poultry processing
- Dairies and cheese dairies
- Bakeries and commercial kitchens
- Catering and food service
- Production and industrial companies
- Personnel and hygiene areas
Planning Industrial Washbasins to Suit Your Operation.
In addition to the standard models listed above, Heim-EDT offers customer-specific adaptations. The version can be adapted, among other things, to the required number of washing stations, the available installation space, the desired installation type and the required accessories.
For targeted technical coordination, the following information is required:
- Number of washing stations required
- Available width, depth and height
- Wall-mounted or free-standing installation
- Sensor or knee operation
- Desired accessories
- Existing water, wastewater and power connections
- Area of application of the washbasin
- Existing room or installation drawing
FAQ Section
What is an industrial washbasin?
An industrial washbasin is a washing station designed for commercial working and hygiene areas. In contrast to typical sanitary washbasins, the focus is on robust construction, easy-to-clean surfaces and adaptation to operational processes.
What material are the washbasins made of?
The industrial washbasins and hand wash troughs from Heim-EDT are made of stainless steel 1.4301. The basin body is fully welded and designed with generous radii.
What is the difference between a hand wash basin and a hand wash trough?
The HWB model provides a single washing station. Hand wash troughs are longer and provide several washing stations next to each other. Heim-EDT offers hand wash troughs with two to six washing stations.
How many washing stations are available?
The current product range includes a single hand wash basin as well as hand wash troughs with two, three, four, five or six washing stations. Further customer-specific adaptations can be reviewed.
Are the washbasins available with contactless operation?
Depending on the version, contactless sensor operation is available. Alternatively, the washbasins can be activated via knee operation.
Can the washbasins be mounted on the wall?
Yes. Depending on the version, the washbasins are available for wall-mounted installation or as a free-standing version. In addition, versions without rear wall or with substructure are available.
Is an instantaneous water heater included as standard?
No. The instantaneous water heater is available as an optional accessory component. The required version and connection value are coordinated according to the selected configuration.
Which accessories can be added?
Available accessories include instantaneous water heaters, Dyson Wash & Dry, soap dispensers, disinfectant dispensers, paper towel dispensers and waste bins.
Are custom-made versions possible?
Yes. Heim-EDT offers customer-specific adaptations. Among other things, the number of washing stations, installation type, installation situation and accessories can be taken into account.
Which companies are the washbasins suitable for?
The hand wash basins and hand wash troughs are intended for food processing, catering and industrial companies. The specific version is adapted to the area of application and the operational processes.
What information is required for a quotation?
Helpful information includes the desired number of washing stations, the available installation space, the installation and operating type, the required accessories and details of the existing connections.
