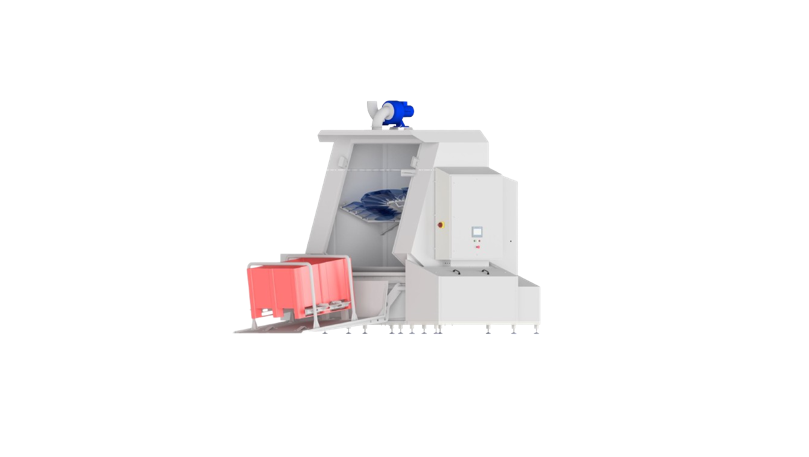

Big Box Washer for effective cleaning of Big-boxes.
Heim EDT Big-box Washer /Big Box Washing Machines are made of high-quality stainless steel and designed in compliance with HACCP standardization. The cleaning equipment is designed to clean the Big boxes of various norm sizes and custom sizes. When it comes to cleaning Big boxes, our washing machines are economic in resource consumption and increases productivity. Optionally, the process can be extended with drying operation. The machine is customized for the cleaning material of each company, so that a wider range of items can be cleaned.
Capacity: 40 - 200 per hour.
The system can also be designed for processing paloxes (large agricultural containers).
Product description: Big Box Washer.

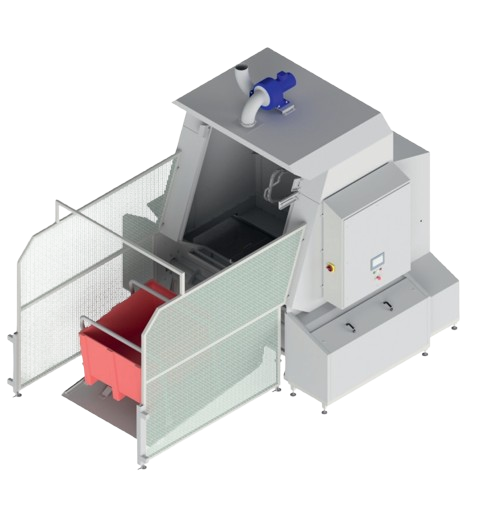

The loading/unloading of the containers is supplied as standard with a motor-controlled loading door by a servomotor, which serves both to hold the Big boxes and to close the washing chamber as well. The containers are easily placed and clamped directly on the door. The door is then closed watertight (drip water recovery), and with the closing of the door the washing operation begins automatically. At the end of the washing operation, the door then opens automatically, and the Big boxes can be unloaded.
Heim - EDT: Big Box Washer.
TOP CLEANING RESULTS.
Prewash.
Big-boxes are pre-cleaned during the pre-wash and baked-on impurities are moistened, perfectly preparing them for the main wash. The built-in tank heater of the washers maintains the temperature of the wash water. The water from the prewash is then used to clean the Big boxes.
TOP CLEANING RESULTS.
Main wash.
In the main wash of the Big-box washer, the circulating wash zone thoroughly washes the Big-boxes from all sides and inside. The water-jet system inside cleans them thoroughly in and out. A built-in filtration unit helps reduce the resource-consumption and thereby incurred costs. This contributes to the reduction of germs and bacteria. Cleaning of the containers is fast, effective and saves resources.
TOP DRYING RESULTS.
Clear rinse and drying.
During the clear rinse, the Big-box washer rinses the Big-boxes with hot and clean fresh water and thermally disinfects them (optionally, the Big-boxes are cleaned in the washers with the addition of detergents or disinfectants). This water is then optimally reused during the next main wash. This unique process achieves maximum washing results of the containers and Big boxes without pH carry-over with minimum consumption of water, energy, and chemicals. The washers from the manufacturer Heim – EDT thus generate minimal operating costs with the best cleaning results.
On request, a drying module can be integrated into the Big-box washing machine. The drying process is fast, efficient and of the best quality. The size of the Big-box washing machine will be adapted to your company. the “EDT-Guide-Booster” cold air blowing system: this is in the extension of the equipment after the neutral zone. The high air flow rate ensures that a drying efficiency of 80 to 90% is achieved.
Information Big Box Washer.
Container and washing material.
The following goods can be cleaned in our washing machines:
- Standard Big boxes
- Special Big boxes
Are you looking for a Big box washing machine for a different length, shape, or size of containers?
No problem, contact us and together we will find a solution. We adapt all machines individually to your items to be washed, thus achieving the perfect results for you, and ensuring optimal hygiene.
Washing cycle.
The washing cycles are adjustable, the average washing time is about 100 seconds and comprises of 6 phases:
- Loading and closing of the door
- Cleaning at 35 – 60°c
- Pause for draining
- Rinsing with disinfecting effect at 82 – 85°c
- Pause for dripping (optional drying)
- Opening of the door and after-runtime of the fume hood
Afterwards, the containers can be removed from the machine. If you need special product specifications, please contact us directly and we will design the machine according to your needs. For detailed prices and information about a system, please contact us directly.
Technical data.
Below are the technical data of a Big box washer for cleaning 200 Big-boxes per hour:
- Power supply: 3~400V/50Hz+N+PE
- Motor protection: IP55
- Pump capacity:22 kW ~ 90 mm³ at 6 bar
- Fume extractor: low pressure fan 2,2 kW
- Water connection tank + rinse: 3/4″ AG
- Water drain: quick drain valve 200 x 200 mm, additional water drain 3″
- Tank capacity: approx. 800 litres
- Noise level: approx. 65db (A)
- Electrical tank heating: 4 x 9 kW
- Connected load: approx. 25 kW (excl. tank heating and flow heater)
- Washing time: adjustable, based on degree of soiling/contamination
- Tank per hour: 15 – 30 tanks/h depending on degree of pollution
- Nozzle ring: stainless steel AISI 304
- Washing temperature: 35 – 60°C (adjustable)
- rinse temperature: 82 – 85°C
The dimensions and components of the Big boxes washing machines are adapted to the requirements of your company and the prices vary.
