KWA Series Cutter Wagon Washers.
KWA series cutter washers are compact systems for cleaning cutter wagons and large containers. The systems include an optional pre-wash, a main wash and a final rinse.
Depending on the model, the capacity is 20, 30 or 150 cutter wagons per hour. Customer-specific adaptations are available.
KWA Series Models and Capacities.
Loading and unloading of the containers is carried out as standard using a motor-operated loading door. The door holds the items to be washed and also seals the wash chamber.
The containers are placed and secured directly on the door. The door is then closed watertight. A drip water recovery system is provided. Closing the door starts the wash cycle automatically. When the cycle is complete, the door opens automatically.
Model and Capacity.
KWA 200 with a capacity of 30 cutter wagons/h.
Model and Capacity.

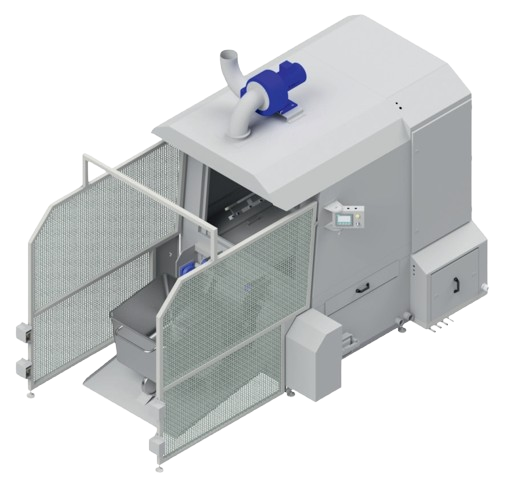

KWA 300 with a capacity of 30 cutter wagons/h.
Model and Capacity.
KWA S with a capacity of 20 cutter wagons/h.
Model and Capacity.
KWA D with a capacity of 150 cutter wagons/h.
Six-Phase Wash Cycle.
The cleaning and wash cycles are adjustable. The average duration of one wash cycle is approximately 100 seconds. A pre-wash can be added as an option.
The wagon wash process comprises six phases:
- Loading and closing the door
- Hot-water cycle at 35–60 °C
- Draining pause
- Rinsing with a disinfecting effect at 60–85 °C
- Draining pause
- Opening the door, run-on time for the vapour extraction system, if installed, and unloading the containers
QUALITÄT MADE IN GERMANY.
Technical Data for One System Example.
The following technical data refers to one system example. The specific configuration may vary depending on the model and customer-specific adaptation.
| Feature | Specification According to the Product Sheet |
|---|---|
| Tank capacity | Approx. 670 litres |
| Noise level | Approx. 65 dB(A) |
| Electric heating | 2 × 9 kW |
| Connected load | Approx. 16 kW, excluding tank heating and boiler |
| Wash duration | Freely selectable |
| Nozzle rings | Stainless steel 1.4301 |
| Wash temperature | 35–60 °C, freely selectable |
Cutter Wagon Washer with Automatic Loading and Unloading.
The cutter wagon washer shown in the video features automatic loading and unloading. This wagon cleaning machine is designed for the industrial cleaning of cutter wagons and comparable transport trolleys.
The automated handling supports a structured cleaning process and can be adapted to existing production processes.
Options and Customer-Specific Adaptations.
Equipment
- Loading aid
- Vapour extraction system
- Drum filter
- Dosing pump
Drying and Heating
- Drying from model KWA D
- Steam-heated version
- Heat exchanger
- Electrically heated version
Request a Project-Specific Cutter Wagon Washer.
The KWA series is available in several models and with various options. Heim-EDT also offers customer-specific adaptations.
Contact us to discuss the model, capacity and equipment required for your project.
Frequently Asked Questions
The KWA series includes the KWA 200, KWA 300, KWA S and KWA D models. According to the product sheet, their capacities are 20, 30 or 150 cutter wagons per hour, depending on the model.
The cleaning and wash cycles are adjustable. The average duration is approximately 100 seconds.
The hot-water cycle takes place at 35–60 °C. It is followed by rinsing with a disinfecting effect at 60–85 °C.
Loading and unloading are carried out as standard using a motor-operated loading door. The cutter wagon is placed and secured on the door. Closing the door starts the wash cycle automatically.
The available options are a loading aid, vapour extraction system, drum filter, dosing pump, drying from model KWA D, a steam-heated version, heat exchanger and electrically heated version.
Yes. Heim-EDT offers customer-specific adaptations for the cutter wagon washer.
