Container Washer for effective cleaning of Containers.

The IBC Container Washer , often referred to as an IBC Container Washing Machine, is a hybrid construction made of stainless steel that complies with the HACCP standard. The cleaning system is designed for cleaning IBC containers. When it comes to cleaning containers, these container washing systems are highly efficient due to the integrated water filter. Washing and drying can also be combined by integrating a drying module. Since the device is customized for each company, the dimensions of the items being cleaned can vary.

Capacity: Depending on the requirement, the system is designed as a continuous-flow or batch-loading configuration.

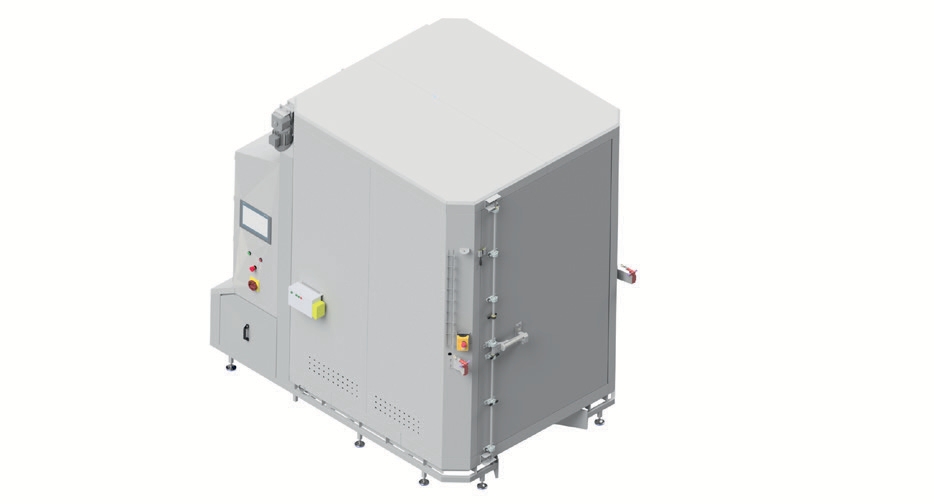

Container washer for cleaning IBC containers

Product description: Container Washer.​

Container washing machines come in different configurations, depending on the specific needs of the industry. They can be a single cabin machine or a dedicated wash-station or a Pass-through washing system depending on the customer’s requirement, and they can clean various types of containers such as, cans, drums, kegs, and tanks.

The washing sequence involves the following steps,

  • pre-washing,
  • main washing,
  • rinsing,
  • and drying (on request)

In a Pass-through container washing machine, the containers are loaded onto a conveyor belt and transported through the cleaning system. The first step is pre-washing, where the containers are sprayed with water or a cleaning solution to remove any loose debris or dirt. The main washing process then follows, where the containers are exposed to high-pressure water jets or spray nozzles to remove any remaining dirt, stains, or contaminants. The cleaning solution used in the main washing process can be customized to suit the specific needs of the industry, such as using specialized detergents or sanitizers. The containers are thoroughly washed from all sides and inside in a circulating washing zone. The built-in filter system continuously filtrates the water, this helps to get rid of dirt and debris as well as reduce germs and bacteria. The Washing equipment’s built-in tank heater maintains the temperature of the washing water.

After the main washing process, the containers are rinsed with clean water to remove any remaining cleaning solution.

In the rinsing zone of the Container washer, the containers are rinsed with hot and clean fresh water and thermally disinfected (optionally, the containers in the washing equipment are cleaned with the addition of detergents or disinfectants). This water is then optimally directed into the main washing zone of the Washing equipment and reused. This unique process achieves maximum washing results of the bins and containers without pH carryover with minimum consumption of water, energy, and chemicals.

The final step is drying, where the containers are dried using hot air or compressed air to ensure that they are completely dry before they are used again.

Heim - EDT: Container Washer.

TOP CLEANING RESULTS.​

Pre-wash and Main wash.

Products to be cleaned are washed inside and outside thoroughly with water-jet spray nozzles.

In the pre-wash operation heavy debris and dirt and washed off through a specific drain tunnel and then the main wash operation begins followed by the rinsing operation.

The built-in filter system helps to reuse the water and thus reduce the consumption of resources and costs. The Washing equipment’s built-in tank heater maintains optimal water temperature.

TOP DISINFECTION RESULTS.​

Rinsing and disinfection.

In the rinsing zone of the Container washer, the containers are rinsed with hot and clean fresh water and thermally disinfected. This water is then optimally directed into the main washing zone of the Washing equipment and is available for use again.

This unique washing machine process achieves maximum washing results of the containers with minimal water, energy and chemical consumption and no pH carryover. Optionally, depending on the model, a drying solution for the containers can be integrated by the manufacturer in the interior of each tunnel.

TOP DRYING RESULTS.

Drying zone.

The final step is drying, where the containers are dried using hot air or compressed air to ensure that they are completely dry before they are used again. Latest drying technology is inbuilt into the washing machine on request, depending on the degree of drying required either a hot air blower unit or a compressed air blower unit can be chosen. Typically, the “EDT-Guide-Booster” cold air blowing system is inbuilt: this is in the extension of the equipment after the neutral zone. The high air flow rate ensures that a drying efficiency of 80 to 90% is achieved.

Our experience with industrial washing systems in numbers.
0
Countries
0
Cleaned goods
0
Systems in use
Container Washer.

Information Container Washer

  • Mixing containers
  • Storage Containers
  • Material transport containers

Are you looking for a container washing machine for different length, shape, or size of containers?

No problem, contact us and together we will find a solution. We adapt all machines individually to your wash goods to be cleaned, thus achieving the perfect results for you.

All our container washing machines can be equipped with the following options or accessories:

  •         Drying module
  •         Application specific water filter
  •         Conveyor belts
  •         Dosing pump
  •         Fume extractor
  •         and many more

If your desired product specification is not listed, please contact us directly and we will design the machine according to your requirements. For detailed prices and information about a machine please contact us directly.

  •         Capacity:  20 IBC containers per hour
  •         Machine dimension: 6.500×1.200×1.625mm
  •         Material: stainless steel AISI 304 T=2,0mm
  •         Belt speed: 1,75 m/min
  •         Pump: DWO300
  •         Washing pump power: 2,2kW
  •         Flow rate washing nozzles: 500 l/min
  •         Water consumption approx.: 0,5 – 0,6 l/container
  •         Washing temperature: 30- 60°C Adjustable
  •         Nozzles: Clip-eyelet (rotatable flat jet nozzles)
  •         Filter system: plug-in sieve made of stainless steel AISI 304 filter

Dimensions and components of container washing machines are adjusted to the requirements of your company and the prices vary accordingly.

IBC container washing machine against white background
Quality MADE IN GERMANY.

Industrial container washing systems directly from the manufacturer.

Products from the machinery manufacturer Heim – EDT GmbH, such as IBC container washing systems, provide the optimal solution for washing product-specific containers. These container washing systems feature a hygienic design, unparalleled quality, and innovative technologies for quick and effective cleaning. Depending on their type and system, these washing systems are also referred to as container washing machines or container washers. A container washing system can be divided into a wash zone and a rinse zone.

HEIM - EDT | THE RIGHT CHOICE.

Not only do our years of experience with washing systems, hygiene barriers, and operational equipment speak for us, but also our satisfied customers and partners. We don’t just offer you solutions – we develop shared concepts tailored perfectly to your needs and stand by your side for any questions, concerns, and challenges. Reach out to us comfortably and without obligation for more information, pricing, and further details.

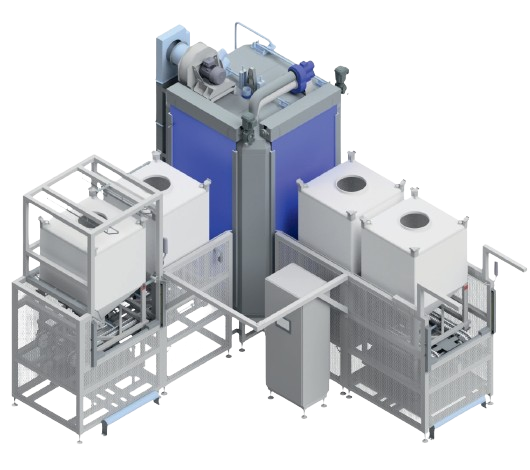

Container washing plant as loading plant
OVER 30 YEARS OF EXPERIENCE.​​

Experience in designing and manufacturing container washing machines

As a long-standing manufacturer of Container washing machines, we know the crucial points essential for compliance with hygiene standards. We offer different categories of washing equipment at fair prices and can integrate them directly to your logistics or production process directly during your facility/building construction phase.
For quotations, contact us and together we will find the right solution for you. We adapt all machines individually to the size and shape of your items to be washed, thus achieving the perfect results for you ensuring optimal hygiene and cleaning results.
